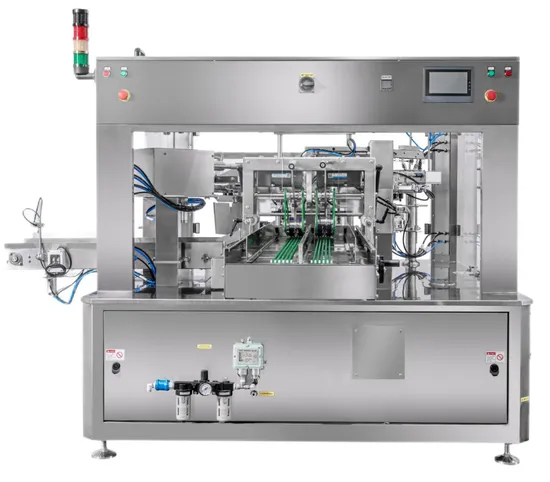

Automatic Rotary Premade Pouch Doypack Liquid Beverage Filling and Sealing Food Packing Machine for Solid

Basic Info.

Model NO.	AP-8BT-DUPLEX
Automatic Grade	Automatic
Application	Cleaning, Detergent, Cosmetics, Drinks, Skin Care Products, Dairy Products, Hair Care Products, Oil, Tea, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour, Seasoning
Type	Filling and Sealing Machine
Forming Species	Bag Moulding
Forming Function	Forming, Filling, Seal
Driven Type	Electric
Material Type	Free Consultation, Lifetime Paid After-Sales Servi
Packaging	Bag
Packaging Material	Plastic
Material	Stainless Steel #304
Color	Silver
Power Consumption	5kw
Speed	50-100
Transport Package	Wooden Box
Specification	L3158mm*W2307mm*H1708mm (Not include dosing unit)
Trademark	Alpha-pack
Origin	China
HS Code	8428909090
Production Capacity	1000

Product Description

Technical Specification

Application
AP-8BT DUPLEX is designed for premade pouch packaging application, suitable for flat pouch, doypack, stand-up pouch, zipper pouch, side spout pouch, gusset pouch packaging. Mix-match various dosing unit, it could be filled the related products, such as below.

1. Powder: Wheat flour, soup - (By use auger System)
2. Granule: Sugar, Seasoning - (By use Volumetric Measure or Scale)
3. Liquid: Detergent, Shampoo, Rinse, Drinks (By piston pump or rotary Pump)
4. Paste: Retort food- (By spiral pump or rotary Pump)

Packing Process
1. Pouch feeding conveyor & pickup the pouch
2. Date coding & Zipper open device (option)
3. Open the bottom of pouch, for self stand pouch
4. Pouch top opening
5. First filling position
6. Second filling position (option)
7. First sealing position
8.Second sealing position
9. Pouch feed out conveyor

Standard Equipments
1. Panasonic PLC + 10"Inovance Touch Screen.
2. Bag Infeed Conveyor.
3. Bag opening blade with full opening detector.
4. P.I.D. temperature controller.
5. #304 Stainless Steel Construction.
6. Graphical color touch panel.
7. Discharge conveyor.

Alpha-Pack Enterprise Limited was established in 1991 in Hong Kong. Alpha-Pack is a comprehensive enterprise that dedicated in packaging machinery in last +30 years; it combines R&D, production, marketing and service together. Since the company has been founded, Alpha-Pack cooperated with many famous European packaging machinery manufacturers to make the packaging machinery for worldwide market. As the name in Chinese "Alpha-pack",means we made the machine with European standard but in Chinese manufacturing cost. Thanks to the trust from all the business partners, customers and staffs, Alpha-Pack has been grown as one of the biggest packaging machinery manufacturing group in South China, with more than 80,000 m2 manufacturing workshops in China and Europe, Alpha-Pack became the leading packaging manufacturer in China for the following categories of packaging machineries

Name	Content
Model No.	AP-8BT-DUPLEX
Pouch Size(Length)	130-450mm
Pouch Size(Width)	100-170mm
Speed	50-100pcs/Min
Max.Filling Volume	200ml
Air Consumption	190N Liter/Min
Machine Case Materials	304 Stainless Steel
Pouch Materials	Heat Sealable Laminated Film
Machine Size	L3158mm*W2307mm*H1708mm (Not include dosing unit)
Electric Connection	220V or 380V-3 Phase, 50 HZ/60HZ
Power Consumption	5KW
